Alfa Laval NX 418 Decanter | Sludge Thickening Centrifuge

Table Of Contents

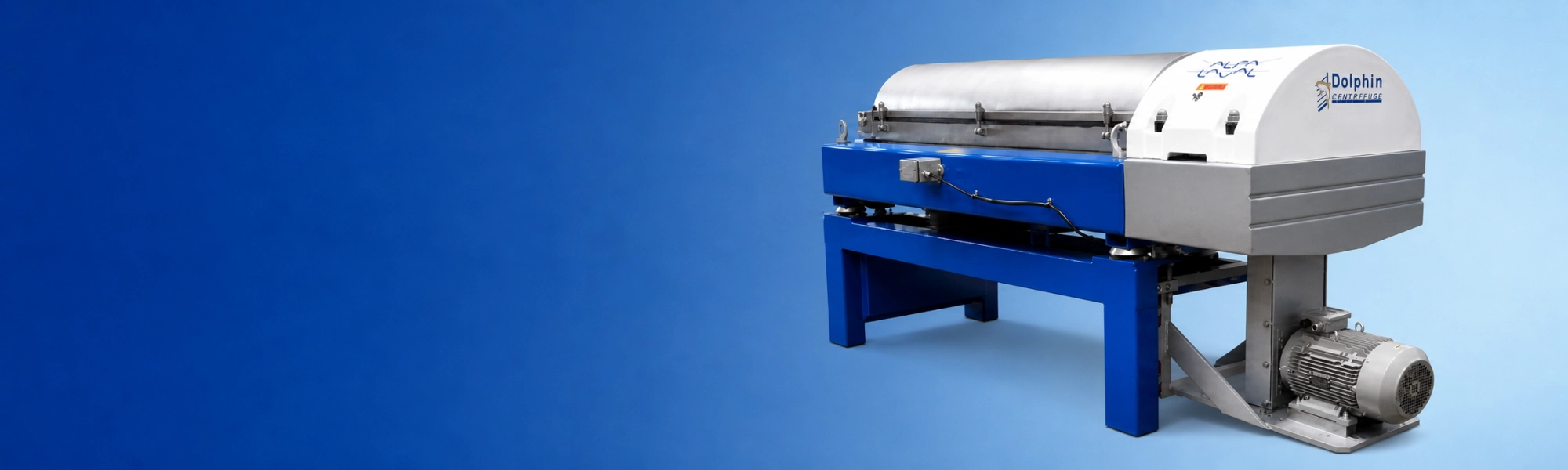

Alfa Laval NX 418 B31-G Two-Phase Decanter Centrifuge

The Alfa Laval NX 418 Decanter Centrifuge is a horizontal de-sludging centrifuge built for the two-phase separation of wastewater, crude oil tank bottoms, municipal sludge-thickening, industrial sludge dewatering, paint sludge handling, etc.

With a 20 HP Motor, the NX 418 decanter has a bowl RPM of 4,000 and can process 110 GPM of water with light sludge.

Applications

The Alfa Laval NX-418 Decanter is used for the following applications.

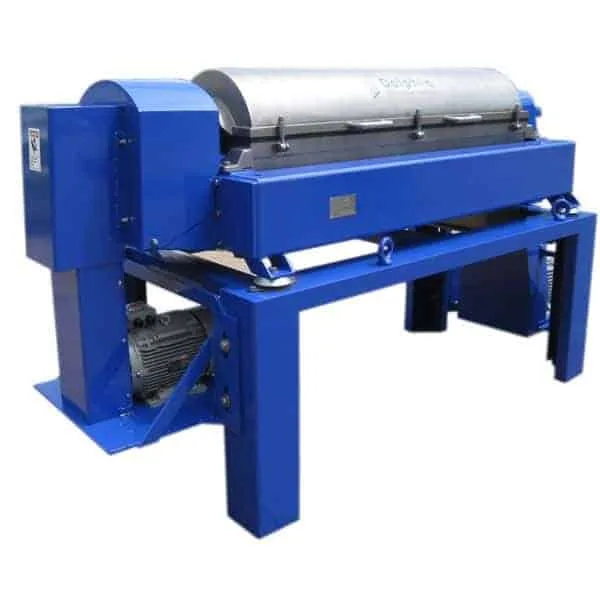

Remanufactured Alfa Laval NX418 3-Phase Rendering Centrifuge
Remanufactured Alfa Laval NX 418 Decanter Centrifuge

Cross Section Diagram

Decanter Cross Section
Decanter Centrifuge Cross Section

Specifications

Model TypeAlfa Laval NX 418 B31-G Decanter Centrifuge
Rated Capacity110 GPM on Water Sludge Thickening
Auger Differential Speed1 ~ 50 RPM
Drive Motor Power20 HP
GearBox Ratio1 : 159 (2.5 kN-M)
AE (Area Equivalent)1,565
Bowl Speed4,000 RPM
G-Force3,150 RCF
Conveyor ProtectionCarbide Tile or Tungsten Carbide Hard-Surfacing

Alfa Laval UVNX 418 B-11 Three Phase Decanter Centrifuge (Tricanter)

The Alfa Laval UVNX 418 Decanter is a three-phase decanter centrifuge specially built for the three-phase separation of fish oil, olive oil, animal fat-rendering, etc.

With a 25 HP Motor, the UVNX 418 decanter centrifuge has a bowl RPM of 4,000 and can process 70 GPM of Fish Oil and Meal Separation.

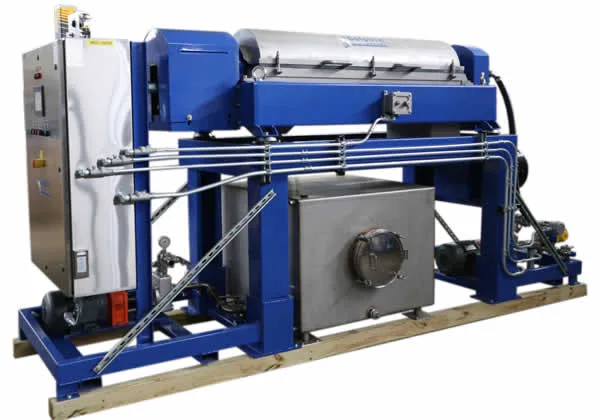

Decanter Centrifuge for Hemp Ethanol Extraction
Decanter Centrifuge for Hemp Ethanol Extraction

Specifications

Model TypeAlfa Laval UVNX 418 B11-G (Three-Phase Decanter)
Rated Capacity70 GPM on Fish Stickwater & Fishmeal Separation
Auger Differential Speed1 ~ 50 RPM
Drive Motor Power20 HP
GearBox Ratio1 : 159 (2.5 kN-M)
Bowl Speed4000 RPM (3,150 Gs RCF)
Conveyor ProtectionCarbide Tile or Tungsten Carbide Hard-Surfacing

The following are some photographs of Alfa Laval NX-418 Decanters Reconditioned by Dolphin Centrifuge.

Alfa Laval NX 418 Decanter

Alfa Laval NX 418 Decanter

Alfa Laval NX 418 Crude Oil Dewatering

Alfa Laval NX 418 Crude Oil Dewatering

Alfa Laval NX 418 Hemp Biomass Ethanol Separator

Alfa Laval NX 418 Hemp Biomass Ethanol Separator

Alfa Laval NX-418 3-Phase Decanter - Animal Fat Rendering

Alfa Laval NX-418 3-Phase Decanter - Animal Fat Rendering

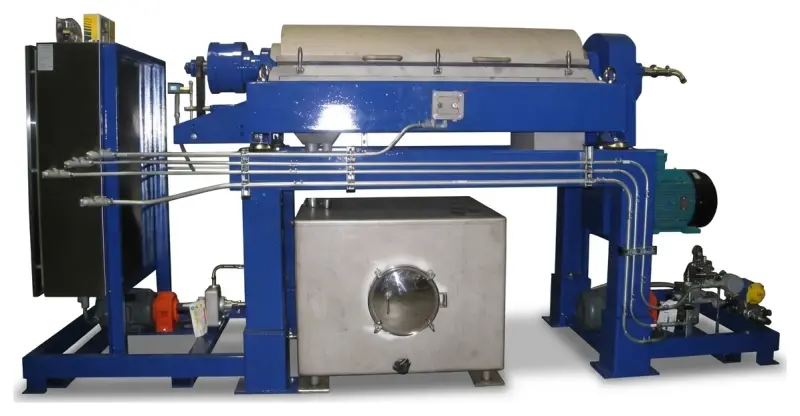

Alfa Laval NX-418 Crude Oil Tank Bottom Module

Alfa Laval NX-418 Crude Oil Tank Bottom Module
